Category: Forensics
Difficulty: Hard (456 points)
Author: Quentin Stevens
Description
Totally normal office traffic. Definitely not a leak.
Challenge files
Solution

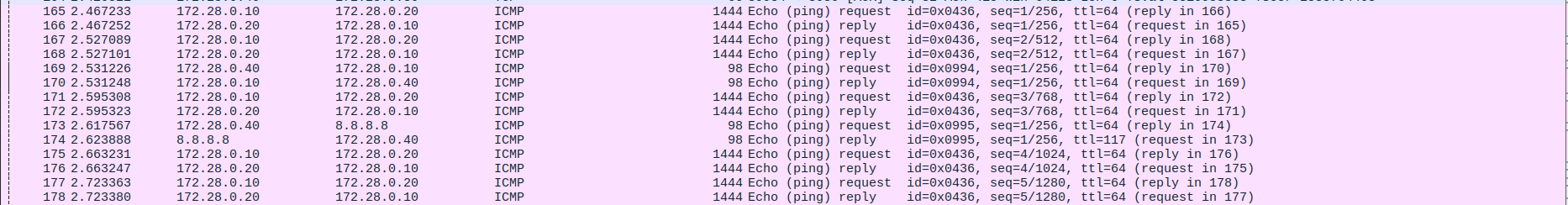

Opening the pcap file in WireShark, the first thing I noticed is that there were a lot of very large ping packets. The data in these ping packets was in base64 format.
Since there was thousands of large ping packets I decided to extract all the data in the files and append them after each other in a file using this small script.
import base64
import re
from scapy.all import rdpcap, IP, ICMP, Raw
pkts = rdpcap("capture.pcap")
parts = {}
for p in pkts:
if IP in p and ICMP in p and p[ICMP].type == 8 and Raw in p:
if p[IP].src != "172.28.0.10" or p[IP].dst != "172.28.0.20":
continue
# Extract the payload data
payload = bytes(p[Raw].load)
s = payload.decode("ascii", errors="ignore").strip()
# Extract seq data
m = re.match(r"^\s*(\d+)\s*:\s*([A-Za-z0-9+/=]+)\s*$", s)
if not m:
# Ignore misformed data
continue
seq = int(m.group(1))
b64 = m.group(2).encode("ascii")
parts.setdefault(seq, b64)
# Reassemble in seq order
blob = bytearray()
for seq in sorted(parts):
b64 = parts[seq]
blob += base64.b64decode(b64, validate=False)
open("out.bin", "wb").write(blob)
When checking the type of the file we can see we got a video!
$ file out.bin
out.bin: ISO Media, MP4 Base Media v1 [ISO 14496-12:2003]
Playing the video we see that it is a video of a lot of QR codes. After scanning one manually it also became clear that this data to was base64 encoded. So, same thing again, I extracted all the video frames using FFMPEG, then scanned all the QR codes and wrote it to a file.
$ ffmpeg -i out.bin frames/frame_%04d.png
import base64
import zxingcpp
import cv2
frame_count = 144
blob = bytearray()
for i in range(1, frame_count + 1):
frame_file = f"frames/frame_{i:04d}.png"
img = cv2.imread(frame_file)
results = zxingcpp.read_barcodes(img)
if not results:
raise ValueError(f"No QR found in {frame_file}")
text = None
for r in results:
if r.text:
text = r.text
break
if not text:
raise ValueError(f"QR detected but no text decoded in {frame_file}")
print(frame_file, len(text))
blob += base64.b64decode(text)
open("out.bin", "wb").write(blob)
Then after checking the type of this file, we see we got a password protected zip.
$ file data.zip
data.zip: Zip archive data, at least v2.0 to extract, compression method=deflate
$ 7z l -slt data.zip
7-Zip 23.01 (x64) : Copyright (c) 1999-2023 Igor Pavlov : 2023-06-20
64-bit locale=en_US.UTF-8 Threads:12 OPEN_MAX:1024
Scanning the drive for archives:
1 file, 146623 bytes (144 KiB)
Listing archive: data.zip
--
Path = data.zip
Type = zip
Physical Size = 146623
----------
Path = users.db
Folder = -
Size = 352256
Packed Size = 146441
Modified = 2026-01-30 22:07:32
Created =
Accessed =
Attributes = -rw-r--r--
Encrypted = +
Comment =
CRC = F12922C5
Method = ZipCrypto Deflate
Characteristics = UT:MA:1 ux : Encrypt Descriptor
Host OS = Unix
Version = 20
Volume Index = 0
Offset = 0
Since the archive used ZipCrypto, which is quite old and insecure, I decided to see if I could crack it using John the Ripper and the rockyou word list.
$ zip2john data.zip > hash.txt
ver 2.0 efh 5455 efh 7875 data.zip/users.db PKZIP Encr: TS_chk, cmplen=146441, decmplen=352256, crc=F12922C5 ts=B0F0 cs=b0f0 type=8
$ john --wordlist=/usr/share/wordlists/rockyou.txt hash.txt
Using default input encoding: UTF-8
Loaded 1 password hash (PKZIP [32/64])
Will run 12 OpenMP threads
Press 'q' or Ctrl-C to abort, almost any other key for status
jamieleemonroe (data.zip/users.db)
1g 0:00:00:00 DONE (2026-03-03 15:50) 2.702g/s 19461Kp/s 19461Kc/s 19461KC/s jan3108..jake010604
Use the "--show" option to display all of the cracked passwords reliably
Session completed.
This succeeded, and so we find the password jamieleemonroe.

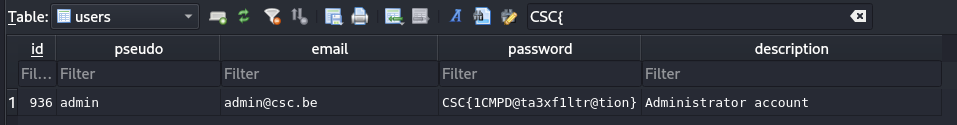

Now we can extract the database file, and when opening this and searching for CSC{ we finally find the flag!
